Modern Agriculture Runs on Motion
Sprocket-driven chains lift grain ten stories in an elevator, tractors crawl through sticky clay, and rotary dryers turn day and night to convert biomass into biofuel. Every one of those duties depends on large-diameter power-transmission components that refuse to quit when dust, mud, or abrasives attack.
Cogmatic is especially capable on that heavy-duty end of the market, supplying induction-hardened steel sprockets and large-diameter ring sprockets to Original Equipment Manufacturers ranging in size from 36 inches to an impressive 18 feet in outer diameter. While other providers don’t have the equipment or struggle to manage costs at these larger diameters, Cogmatic’s Flame Machining process is the ideal value-based solution.
Tough Jobs Demand Tough Materials: Why Hardened Steel Rules the Farm
Agricultural power transmission systems punish their components with sudden torque reversals, high-frequency shock loads, abrasive dust, and corrosive crop byproducts. Plastic idlers crystallize and crack in that environment; cast aluminum deforms at the hub; and low-carbon stainless grades gall under chain pressure. Cogmatic manufactures every sprocket and gear with solid, U.S.-made, high-quality steel to ensure our customers never experience those weaknesses in the field.
Working exclusively with mid- to high-carbon, heat-treatable steel allows our engineers to design tooth profiles that can be induction-hardened to more than 65 Rockwell-C. At the same time, the core remains ductile enough to absorb unexpected jams without cracking. That same metallurgy accepts deep carburized layers when extra wear resistance is required, creating a gradual hardness gradient that resists spalling and tooth-tip micro-cracking over seasons of service.
Sourcing our raw materials from domestic mills also simplifies the process of traceability. Mill certification follows each heat number through flame machining, heat treatment, finish machining, final inspection, and packaging, so customers know the exact chemistry and mechanical properties behind every Cogmatic-made part on their equipment. The result is a range of large-diameter sprockets that meet specification standards in grain, feed, and energy conversion applications.

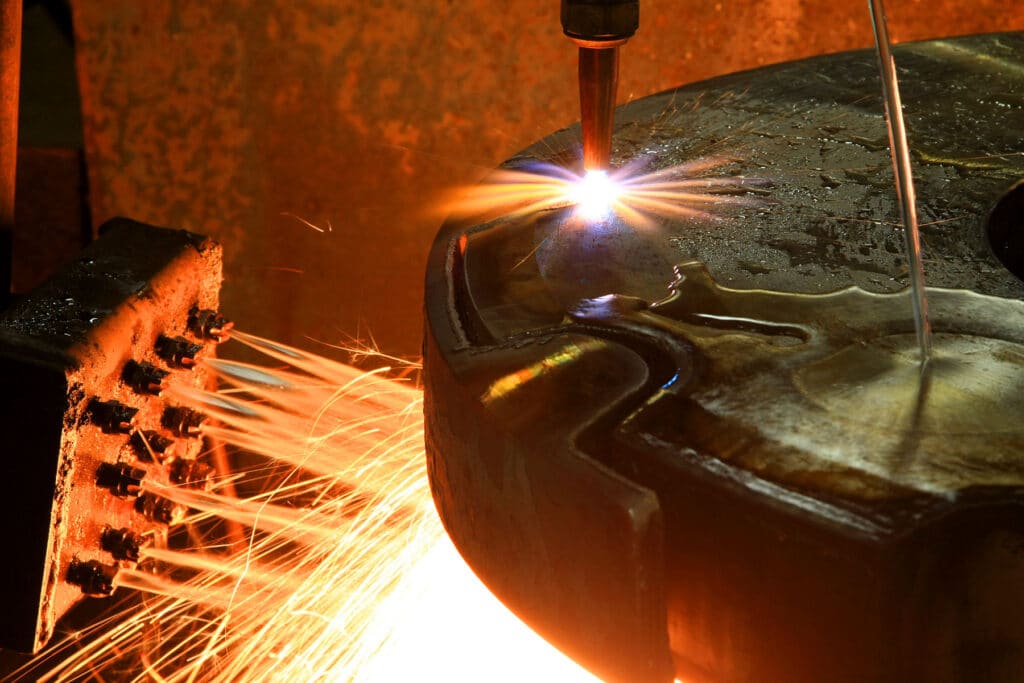

Flame Machining: A Single-Pass Path to Accuracy
Traditional flame cutting leaves rough edges; more typical CNC machining eliminates that roughness, but at a steep cost in terms of time, labor, and tooling. Cogmatic bridges that gap with a proprietary high-pressure oxy-propane process called Flame Machining. A dual-axis drive guides the cutting torch and the workpiece in one uninterrupted rotation, generating smooth, consistent tooth flanks, roots & tips.
Because heat input is carefully controlled, distortion is minimal, even on sprockets measured in yards, not inches. Consequently, any subsequent machining is focused on mating surfaces, such as bores and counterbores. Cogmatic’s proprietary cutting equipment scales seamlessly from an 18-inch crawler sprocket to an 18-foot ring sprocket, giving agricultural engineers freedom to specify precisely the diameter their design needs.
Product Portfolio Sized for Agriculture
1. Roller-Chain Sprockets
Large vertical feed mixers, fertilizer blenders, and biomass conveyors utilize roller chains in sizes ranging from RC-80 to RC-240. Cogmatic produces standard RC roller chain sprockets as either solid rings or as two- and four-piece split segments for easy field retrofit. Bores, keyways, and mounting holes are finish-machined to thousandths of an inch. Lightweighting holes (or lightening holes) can be added to ease handling without sacrificing rim stiffness.
2. Engineering-Class Chain Sprockets
When capacity or environment exceeds roller-chain limits, agricultural OE designers move to an engineering-class chain and sprockets. Cogmatic flame-machines tooth forms for a long list of engineered-class chains with A, B, and C style hubs, featuring pitches of one inch and above, offering face widths up to six inches. We can also include debris-shedding mud-relief notches, machined directly into the profile.
3. Custom Crawler Sprockets
Tracked harvesters, sprayers, and soil-prep rigs need crawler sprockets that clear packed dirt yet maintain precise pitch. Cogmatic builds those rims as single pieces when weight allows or as split segments for larger diameters. Extra clearance at the pitch line, self-cleaning recesses, and induction-hardened flanks combine to keep tracks aligned over thousands of acres.

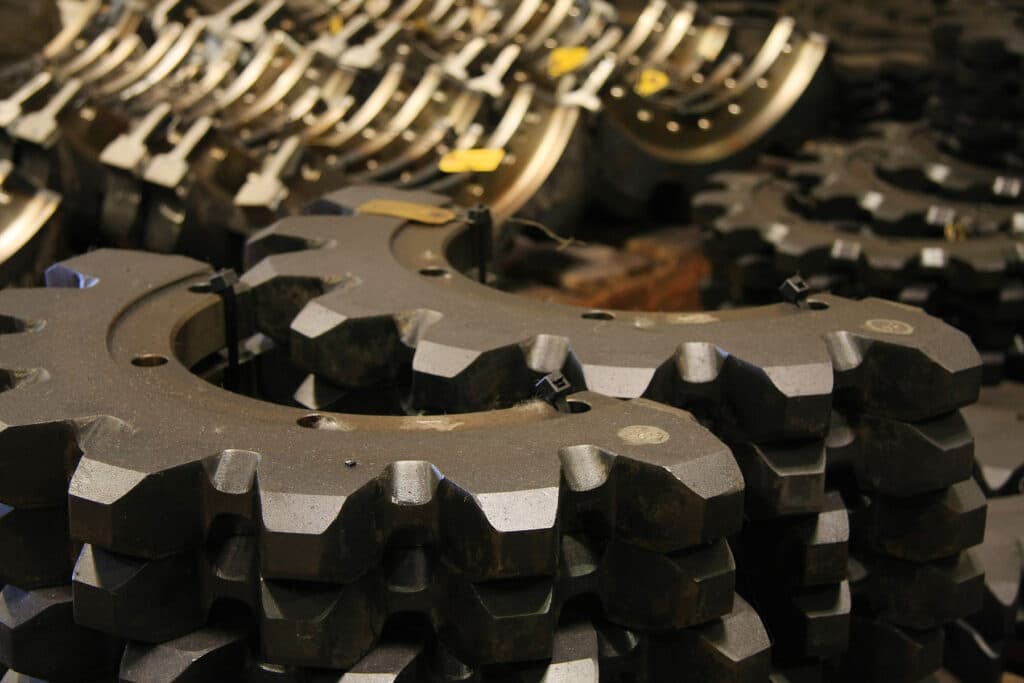

4. Split Sprockets & Sprocket Segments
Supporting MRO activity dictates that replacement hardware be easy to install without compromising quality or ruggedness. Cogmatic’s split sprocket designs are machined as complete rings, ensuring concentricity and tooth profile continuity, then split and match-marked. Available spacer pins and patch plates preserve tooth spacing, ensuring that field technicians can confidently align the segments and quickly return the equipment to full operation.
5. Drum Segments & Guide Rings
Grain dryers, composters, and seed cleaners depend on perfectly round drums to roll smoothly on trunnion tires. A single flat spot can concentrate heat and wear, shutting an operation down in the middle of harvest. Cogmatic solved this issue with rolled steel rings specifically designed for agricultural use. We form 3/4- to 2-inch U.S. carbon-steel plate into discs up to 12 feet in diameter, then flame-machine the friction faces in one pass for uniform profile.
Whether you need guide, inlet, center, or discharge rings, the result is a concentric, abrasion-resistant assembly that keeps grain, feed, and biomass moving through long, dusty seasons.
Core Agricultural Applications
Feed & Fertilizer Mixing
In a feed mill, every batch runs against the clock. Twin-screw mixers and paddle blenders must keep turning through thick slurries of lime, salt, and nutrient powders, while augers start and stop hundreds of times a day.
Cogmatic’s large roller-chain sprockets are made for that grind. The hardened steel teeth remain aligned under heavy loads, allowing chains to glide smoothly instead of whipping and slapping. Keyed or splined hubs transfer torque with minimal backlash. Deep surface hardening defends against the grit that usually wears through ordinary wheels. When a sprocket finally needs replacement after years or operation, split-ring designs let crews unbolt the worn halves and bolt in new ones during a single maintenance break. The result: mixers that run cooler, chains that last longer, and production schedules that stay on track.

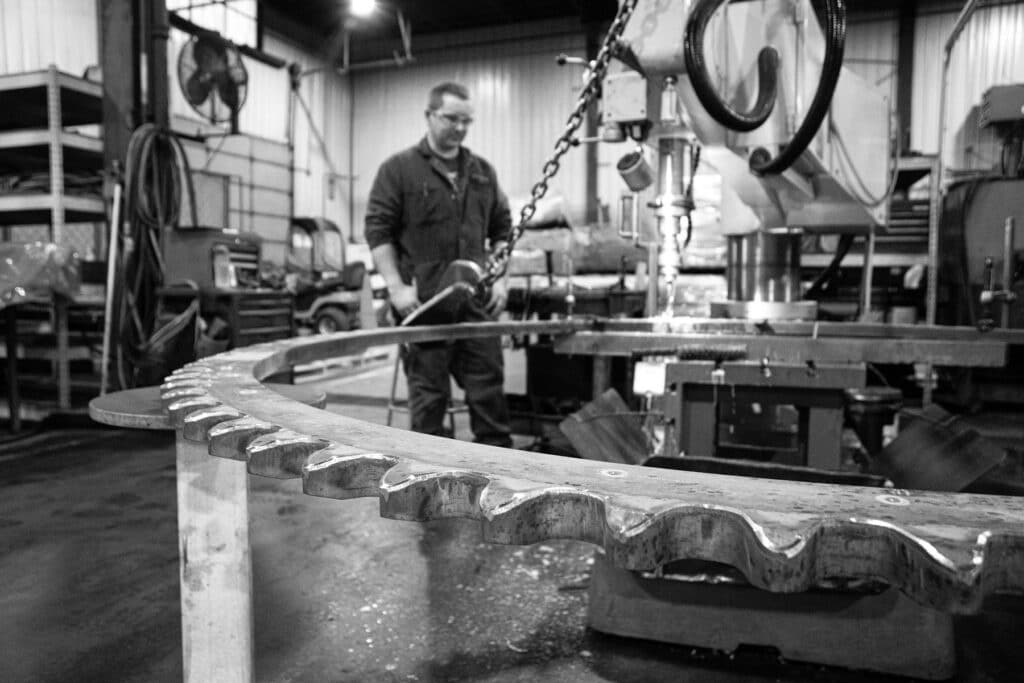

Rotary Dryers and Drums
Biomass burners, grain-conditioning systems, and fertilizer granulation lines all rely on steel cylinders that rotate continuously in caustic environments. Cogmatic specializes in manufacturing ring sprockets and bull gears, typically 4 to 18 feet in diameter, used to drive drums in various applications. We provide the matching drive sprocket, with a bore that’s custom-cut to match any gearmotor shaft. We support a wide range of roller chain and engineered chain installations, as well as a diverse array of mounting requirements.
Tracked Field Machinery
High-horsepower tractors, sprayers, and harvesters count on steel crawler rims to drive rubber or steel tracks through sticky clay, stalk stubble, and hidden stones. When mud packs between bushings or residue wedges under the pitch line, the track starts to ratchet, and wear accelerates quickly.
Cogmatic mitigates those failures with large, flame-machined crawler sprockets built from U.S. carbon-steel plate or forgings. Each rim is cut in a single pass for uniform tooth spacing, then induction-hardened across the entire flank so the profile resists peening and deformation. Optional mud-relief notches are burned into the tooth form during the same operation, shedding soil before it can compact. The result is a track drive that stays engaged, protects bushing surfaces, and keeps equipment moving even in the worst field conditions.
Ethanol Production Plants
Fermentation-based fuel facilities are brutal on power transmission hardware. As corn mash moves from slurry mixers through high-temperature rotary dryers and finally into separation screens, chain-driving sprockets see three simultaneous threats:
- Steam and caustic vapors that cycle temperatures dozens of times per shift.
- Damp mash that dries into razor-sharp DDGS fines and works its way into every roller pocket.
- 24/7 duty cycles that leave little room for routine maintenance shutdowns.
Cogmatic supplies the oversized steel sprockets that thrive in this environment. To maintain exact tooth spacing and keep chains quiet and steady, large-diameter, engineering-class sprockets are cut in a single flame-machining pass. After cutting, the entire tooth profile is induction-hardened and carburized, so the flanks remain at roughly Rc 55-60, while the hub and web remain ductile enough to absorb torque spikes.
Specialized & Legacy Equipment
Older grain legs, beet pilers, or custom-built auger lines often rely on drive hardware that the original manufacturer no longer supports. When those gears or sprockets finally wear out, Cogmatic steps in. Customer technicians collect the damaged part for Cogmatic, then we capture key datums and model a replacement that drops into the existing equipment. Because the new piece is built using the same flame-machining and in-house hardening used on current production, the new replacement hardware delivers modern durability while preserving the machine’s original geometry.
Quality Management & Traceability
Every order moves through an ISO 9001:2015-certified workflow. Manufacturing heat numbers follow each blank from receiving to final shipment; temperature sensors validate that our induction hardening process is achieving the targeted results; and Rockwell testers confirm hardness for each sprocket or gear. Inspection reports accompany the shipment, providing maintenance planners with permanent records for audits or performance tracking.
Collaboration Without Complication
Agricultural engineers can initiate a project using a 3D model, a legacy drawing, or even a worn component removed from a decades-old machine. Cogmatic’s team evaluates manufacturability, suggests simplifications where appropriate, and supplies a clear quotation outlining material, machining, and heat-treating steps. Cogmatic collaborates with customers to develop commercial models that align with their operational needs. We can handle single-piece requirements from one order to the next, and we can establish finished goods inventory to support higher-volume, ongoing production demand.
Sustainability & Long-Term Value
Durable steel components reduce the frequency of replacements, lowering material consumption and maintenance labor costs throughout the machine’s lifetime. Split designs allow maintenance crews to change only the wear elements, eliminating the need to pull entire shafts and reducing both downtime and resource use. Because all steel is domestic, transportation from mill to finished part is far shorter than multi-continent supply chains.
When Every Hour Counts, Count on Precision
When a grain elevator seizes or a tractor track slips a sprocket, the entire crop schedule grinds to a halt. Cogmatic designs for exactly those high-pressure moments. Our flame-machined sprockets hold tooth spacing so true that chains ease into engagement instead of lashing and cracking, while in-house heat treatment armors every root and flank against dust, mud, and sudden torque spikes.
To keep maintenance cycles brief, we supply large rings in split sections, complete with factory-matched marks and alignment hardware. Field mechanics can bolt a new sprocket onto the shaft during a single service window and put the line back into operation quickly. Rigorous quality checks on run-out, hardness, and bore alignment mean each new part spins true from the first revolution—and keeps turning until the last seed is planted and the final load is hauled to storage.
Ready for the Next Challenge
Whether you need a 40-inch RC-160 sprocket for a fertilizer blender, a six-foot engineering-class wheel for a grain dryer, or a dozen guide-ring sectors to bring a biomass drum back to round, Cogmatic already has the equipment, craftsmen, and controls in place to make it happen. All manufacturing steps (flame machining, induction heat treating, welding, finish machining, and final inspection) are managed by our dedicated team, so schedules are predictable and handling risks are minimal.
Send us a drawing, a worn sample, or simply the target performance you want to reach; our engineers will review manufacturability, suggest practical design adjustments (such as split-ring orientation, hub style, or light-weighting holes), and return with a buildable plan based on nearly a century of proven knowledge and excellence in heavy power transmission manufacturing.
For legacy machinery with no drawings at all, we can capture the critical geometry and reproduce it, often with enhanced wear protection from hardening or carburizing.
Built to Keep Agriculture Moving
Agriculture is driven by components that few suppliers are equipped to manufacture. Cogmatic meets those demands with proprietary processes and a bulletproof quality system, all housed in a single Milwaukee plant.
When reliable, long-lasting products are non-negotiable, OEMs turn to Cogmatic for proven solutions built for uninterrupted operation in the most demanding of agricultural environments.
